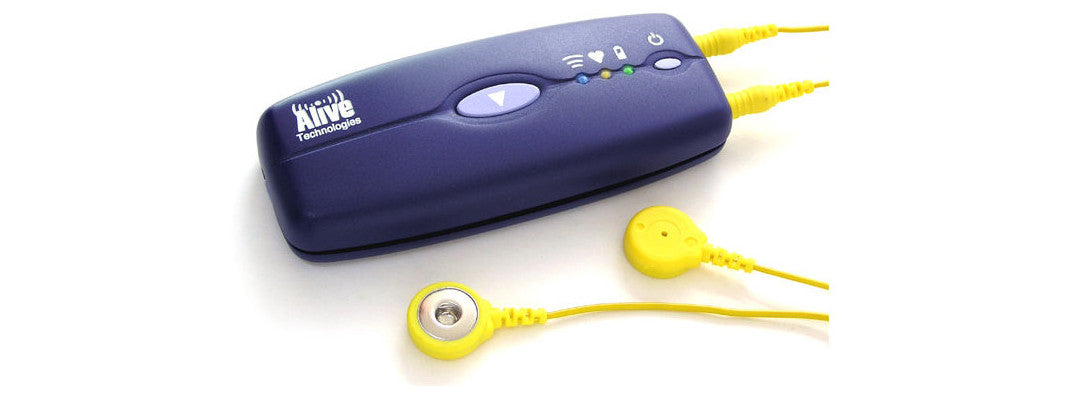

The Alive Bluetooth Heart and Activity Monitor is a wireless health monitoring system for screening, diagnosis and management of chronic diseases, and for consumer health and fitness. Applications include the management of atrial fibrillation and heart failure, cardiac rehabilitation and fitness monitoring.
Designed for use in the doctor's office, home or gym, the monitor uses wireless Bluetooth and mobile phone networks to immediately transmit ECG and accelerometer data to a mobile phone, computer, or central monitoring centre. It features the latest generation of Bluetooth wireless technology and new electrode technology for optimum signal quality.
The Alive Heart and Activity Monitor can be used for remote real time monitoring of exercise programs via the internet. Using the Alive Heart and Activity Monitor, a GPS and mobile phone carried by the person exercising, the program supervisor or coach can remotely monitor the exact position, speed, position, ECG and heart rate in real time. For cardiac rehabilitation programs, and for training programs for elite athletes this provides real time feedback on the intensity and performance, allowing optimisation of the programs for maximum benefit and safety.
Hardware
Specification
|
ECG Channels: Single Channel Resolution: 8bit Sampling Rate: 300Hz Dyn. Range: 5.3mV p-p Bandwidth: 0.5Hz - 90Hz |
Accelerometer Channels: 3 axes Resolution: 8bit Sampling Rate: 75Hz/channel Dyn. range: 5.4g Bandwidth: 0 - 16Hz |
|
Bluetooth Version 2.1 compliant Class 1 (up to 100m range) Serial Port Profile Internal antenna |
Power Source 3.7V lithium-ion 48hrs - continuous wireless Tx. |
|
Internal Storage Type: 1GB SD card Capacity: 21 days |
Physical L 90mm, W 40mm, D 16mm. Weight: 55g with battery |
Developer Kit
Open API

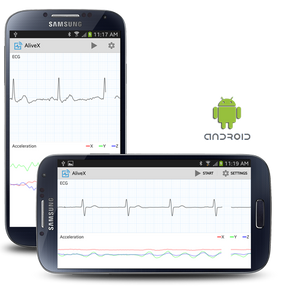

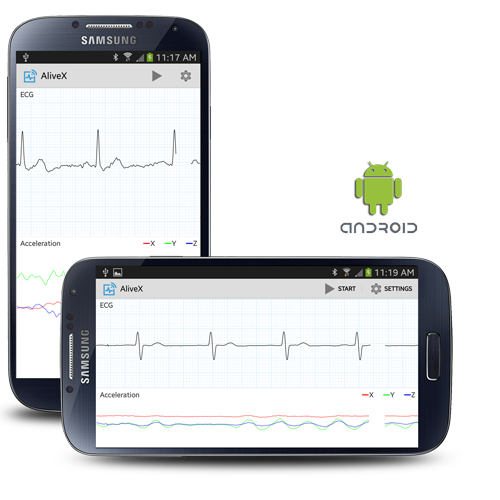

Free sample Android app with source code.
Free sample Microsoft Windows app with source code.
Supported Apps

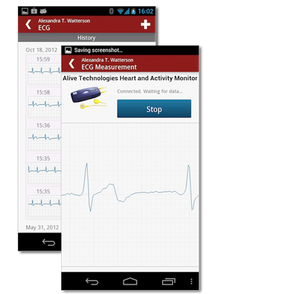

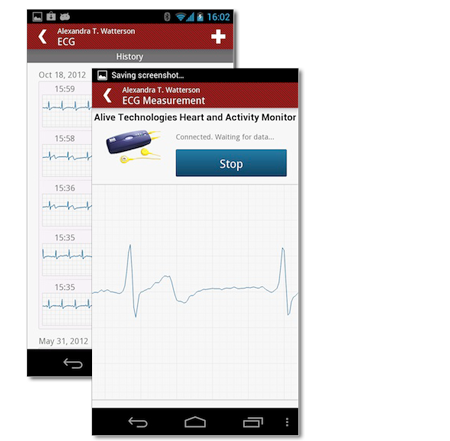

Compatible with Android and MedM Health app
Research
A platform for secure monitoring and sharing of generic health data in the Cloud
D. Thilakanathan et al.
Future Generation Computer Systems.
June 2014
A Multimethod Assessment of Anxiety and Problem Behavior in Children With Autism Spectrum Disorders and Intellectual Disability
LJ Moskowitz et al. American Journal on Intellectual and Developmental Disabilities.
Nov 2013
A Personal Body Area Network as a Pre-Screening Surrogate to the Polysomnography
Sheryl LaFleur et al. 8th International Conference on Body Area Network.
Oct 2013
Classification Algorithm for Feature Extraction using Linear Discriminant Analysis and Cross-correlation on ECG Signals
MF Shinwari et al. International Journal of Advanced Science and Technology.
Nov 2012
The Cross-platform Application for Arrhythmia Detection
A Borodin et al. 12th Conference of Open Innovations Association FRUCT.
Nov 2012
An Energy Efficient Model for Monitoring and Detecting Atrial Fibrillation in Wearable Computing
R Bouhenguel et al. 7th International Conference on Body Area Networks.
Sept 2012
Mobile Arrhythmia Detector
A Borodin et al. 11th Conference of Open Innovations Association FRUCT.
Apr 2012
Sport Training System Based on ECG Monitor
E Stankevich, I Paramonov. 11th Conference of Open Innovations Association FRUCT. Apr 2012
Development of Computer Aided Prediction Technology for Paroxysmal Atrial Fibrillation in Mobile Healthcare
Desok Kim et al. Cardiac Arrhythmias - New Considerations. InTech.
Feb 2012
Exercise for fitness does not decrease the muscular inactivity time during normal daily life
T Finni et al. Scand J Med Sci Sports. 2012
Development and Feasibility of a Smartphone, ECG and GPS Based System for Remotely Monitoring Exercise in Cardiac Rehabilitation
Charles Worringham et al. PLoS ONE.
Feb 2011
Feasibility study of a non invasive Cardiac Rhythm Management System
Peter Leijdekkers et al. Special Edition of IJARS - the International Journal of Assistive Robotics and Systems.
Dec 2010
A Scoring based Monitoring System for Best Performers in Cardiac Rehabilitation
Fahim Sufi et al. IEEE International Conference on Information Technology and Applications in Biomedicine.
Nov 2010
Multimodal Physical Activity Recognition by Fusing Temporal and Cepstral Information
L Ming et al. IEEE Transactions on Neural Systems and Rehabilitation Engineering.
Aug 2010
Effects of vigorous late-night exercise on sleep quality and cardiac autonomic activity
T Myllymäki, H Rusko et al. Journal of Sleep Research, 20.
Jul 2010
Evaluation of Ambulatory ECG Sensors for A Clinical Trial on Outpatient Cardiac Rehabilitation
H Ding et al. IEEE/ICME International Conference on Complex Medical Engineering.
Jul 2010
A Wearable Smartphone-Based Platform for Real-Time Cardiovascular Disease Detection Via Electrocardiogram Processing
J Oresko et al. Information IEEE Transactions on Technology in Biomedicine.
May 2010
ECG Signal Acquisition and Analysis for Telemonitoring
Emil Plesnik et al. Proceedings of the 15th IEEE Mediterranean Electrotechnical Conference.
April 2010
Methods to extract respiration information from ECG signals
R Ruangsuwana et al. IEEE International Conference on Acoustics Speech and Signal Processing.
Mar 2010
Body sensor networks for Mobile Health Monitoring: experience in Europe and Australia
V Jones et al. The Fourth International Conference on Digital Society ICDS 2010. Feb 2010
The Unconventional Interaction Library: Tackling the Use of Physiological Interaction Modalities
Luís Duarte et al. Proceedings of the Eighth International Conference on Creating, Connecting and Collaborating through Computing. Jan 2010
Automatic Detection of Respiration Rate From Ambulatory Single-Lead ECG
Justin Boyle et al. Transactions on Information Technology in Biomedicine (TITB). Nov 2009
Real-Time Cardiovascular Diseases Detection on a Smartphone
Allen Cheng. Poster at mHealth Summit 2009, Washington DC. Oct 2009
Mobile tools for home-based cardiac rehabilitation based on heart rate and movement activity analysis
J. Mattila et al. Engineering in Medicine and Biology Society. Sep 2009
Predicting cardiovascular disease from real-time electrocardiographic monitoring: An adaptive machine learning approach on a cell phone
Z Jin et al. IEEE Engineering in Medicine and Biology Society. Sept 2009
Mobile tools for home-based cardiac rehabilitation based on heart rate and movement activity analysis
Jussi Mattila et al. Engineering in Medicine and Biology Society. Sept 2009.
Energy-efficient multihypothesis activity-detection for health-monitoring applications
G Thatte et al. International Conference of the IEEE Engineering in Medicine and Biology Society. Sep 2009
Mobile persuasive exergaming
Paul Coulton et al. International IEEE Consumer Electronics Society's - Games Innovations Conference. Aug 2009
Open Mobile Miner: A Toolkit for Mobile Data Stream Mining
S Krishnaswamy et al. Proceedings of 15th Int. Conf. on Knowledge Discovery and Data Mining. Jun 2009.
Automatic Sleep Stage Classification Using Electro-oculography
Jussi Virkkala, PhD Thesis, Tampere University of Technology. May 2009.
Optimal Time-Resource Allocation for Activity-Detection via Multimodal Sensing
G Thatte et al. Proceedings of the Fourth International Conference on Body Area Networks, April 2009
Design and Trial Deployment of a Practical Sleep Activity Pattern Monitoring System
J Biswas et al. Proceedings of 7th Int. Conf. On Smart homes and health Telematics. Jul 2009.
Trial Results of a Novel Cardiac Rhythm Management System using Smart Phones and wireless ECG Sensors
Peter Leijdekkers et al. Proceedings of 7th Int. Conf. On Smart homes and health Telematics. Jul 2009
Optimal Allocation of Time-Resources for Multihypothesis Activity-Level Detection
G Thatte et al. IEEE International Conference on Distributed Computing in Sensor Systems. Jun 2009
A Mobile Rehabilitation Application for the Remote Monitoring of Cardiac Patients after a Heart Attack or a Coronary Bypass Surgery
Valérie Gay et al. PETRA 2009, Corfu, Greece. Jun 2009
eartToGo: A Personalized medicine technology for cardiovascular disease prevention and detection
Jin Zhanpeng et al. Life Science Systems and Applications Workshop. IEEE/NIH. April 2009
Multimodal sensing for pediatric obesity applications
M Annavaram et al. UrbanSense08 Workshop at SenSys. Nov 2008
Activity and Heart Rate-based Measures for Outpatient Cardiac Rehabilitation
N Bidargaddi, A. Sarela. Methods Inf Med. 2008
